FG-80/2.ST.160 (Password-Protected Fuel Extraction System)

Product Description

Fuel Guard Anti-Siphon Fuel Tank Inlet Security Lock is a professional fuel security solution developed to prevent fuel theft and unauthorized fuel siphoning from vehicle fuel tanks. Its specialized monoblock structure with an integrated strainer, installed at the fuel tank inlet, effectively prevents fuel siphoning via hoses.

Its high-quality aluminum body provides high resistance against impacts and external interventions. Thanks to specialized locking and mounting apparatus, it offers an unopenable security structure after installation. The engineering-focused strainer design does not interrupt fuel flow even during high-flow refueling and does not extend the filling time.

Fuel Guard product groups offer universal dimensions and vehicle-specific options for every brand and model of vehicle operating with diesel, gasoline, and fuel oil.

Please contact for price information
$ USD € EUR ₺ TL

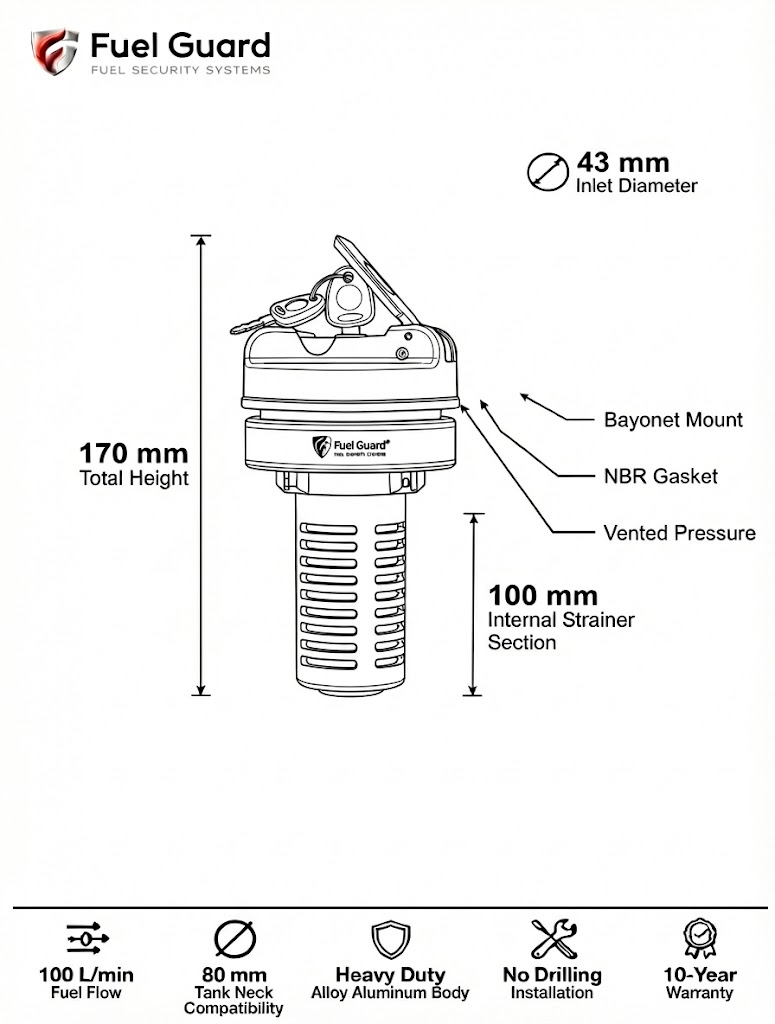

Inlet Diameter / Length 43 mm / -
Body Alaşımlı Alüminyum Malzeme
Fuel Flow Capacity -

Structural and Functional Features

Heat-treated, hard alloy aluminum monoblock body
Locking system compatible with the original fuel cap
Lug-type locking model
Mechanical anti-siphon protection with 4 mm thick strainer structure

Compatible Vehicle Types

Truck
Tractor Unit
Construction Equipment
Bus

Compatible Vehicle Brands

TRUCK-TRACTOR GROUP 33 model
ASKAM
BMC
DAF
FATİH
FORD
IVECO
MACK
MAN
MERCEDES
RENAULT
VOLVO CONSTRUCTION EQUIPMENT GROUP: AMMANN
BITELLI
BOMAG
CASAGRANDE
COMACCHIO
CMI
DYNAPAC
EVERDIGM
HIDROMEK
HAGGLUNGS
HITACHI
JCB
KAWASAKI
LIEBHERR
PISTENBULLY
ROADTEC
SANDVIK
SUMITOMO
TAMROCK
VOLVO
VOGELE
VIBROMAX
VIRTGEN
BUS-MIDIBUS GROUP 6 model
IVECO
MERCEDES
MAN
NEOPLAN
OTOKAR
TEMSA
Swipe to view

Technical Specifications (Global Standard)

Ürün Kodu FG-80/2.ST.160
Product Code FG-80/2.ST.160
Barcode Number 88816626244
Brand Fuel Guard

FG-80/2.ST.160 (Password-Protected Fuel Extraction System)

FuelGuard Profesyonel Yakıt Güvenlik Sistemleri Montaj Rehberi

Installation Guide & Usage

STEP 1

1. Pre-Installation Preparation

IMPORTANT: Fuel Guard is a system integrated into the tank neck (filler neck) without altering the vehicle's original structure. Once installation is complete, the system takes on a "Non-Removable" security structure.
1
Safety: Pull the vehicle onto a flat surface and stop the engine. Strictly do not smoke or approach with open flame in the work area.
2
Required Equipment: 3 mm Allen key, Diesel-resistant liquid gasket or silicone, Fine-tipped screwdriver and light hammer, Cleaning cloth / Rag
3
Cleaning: Completely wipe dry any fuel residues and dust at the tank opening with a clean cloth.

Package Contents

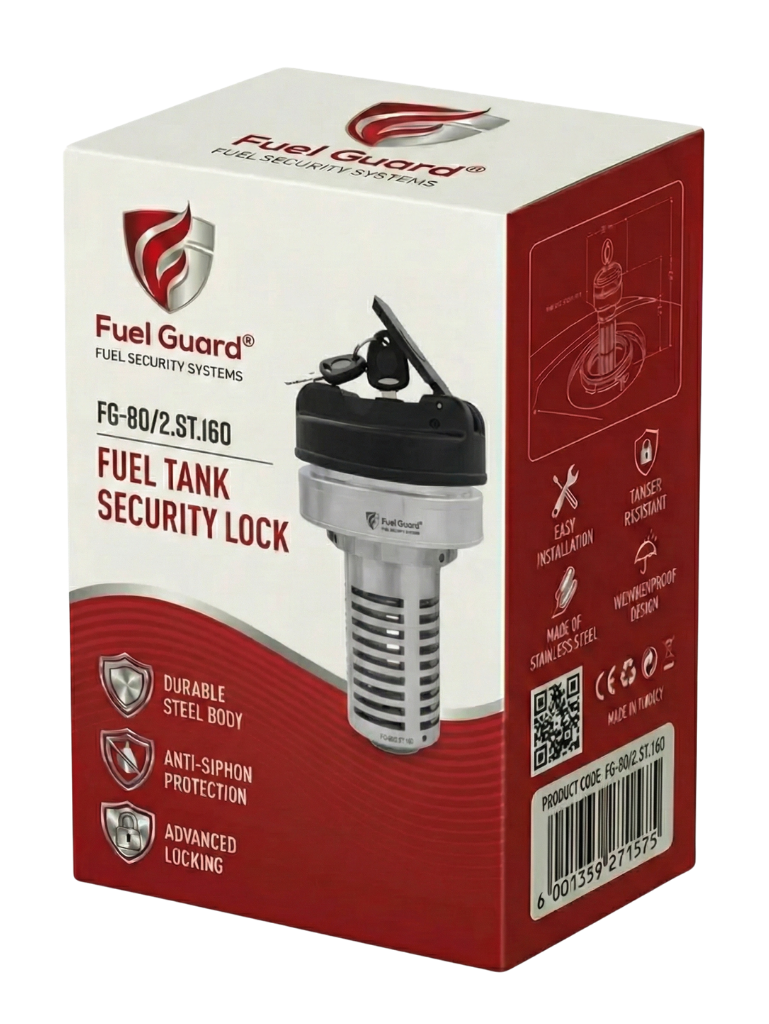

1 Unit Fuel Guard FG-80/2.ST.160 Fuel Security Device
Mounting setscrews
Locked setscrew protector ring
Cap retainer chain
Installation manual and warranty card
