FG-80/2.DT.SNSR.160 WITH SENSOR
| Product Description

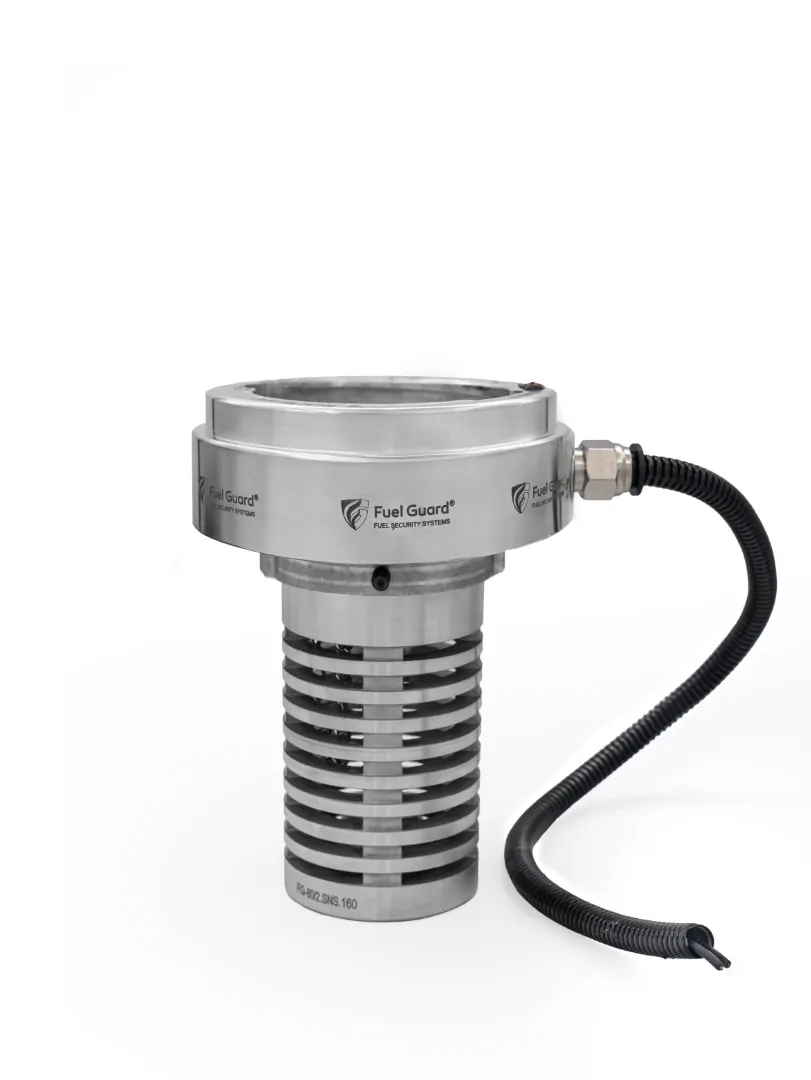

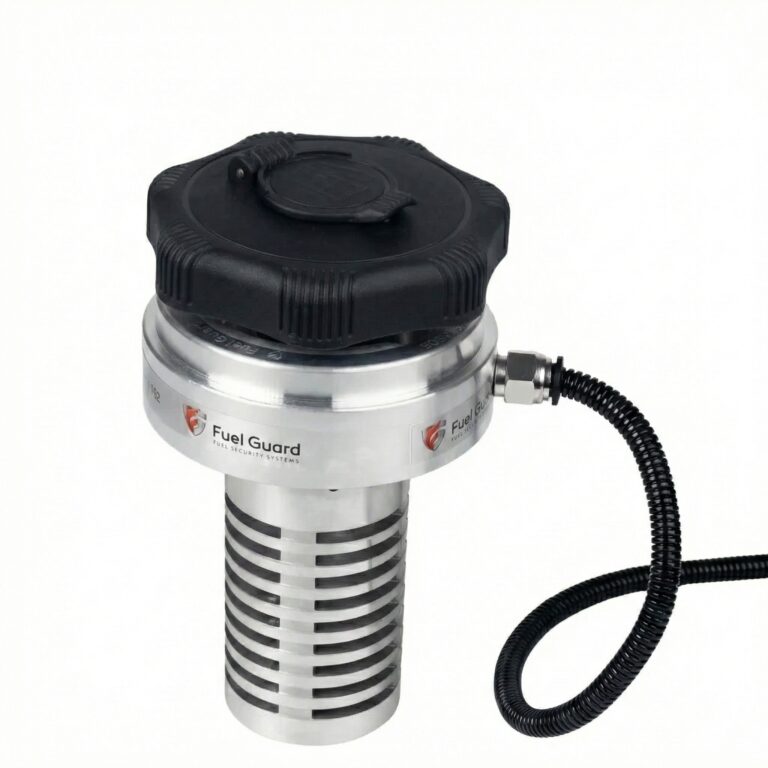

FG-80/2.DT.SNSR.160 WITH SENSOR Fuel Guard Anti-Siphon Fuel Tank Inlet Security Lock is a professional fuel security solution developed to prevent fuel theft and unauthorized fuel siphoning from vehicle fuel tanks. Its specialized monoblock structure with an integrated strainer, installed at the fuel tank inlet, effectively prevents fuel siphoning via hoses.
Its high-quality aluminum body provides high resistance against impacts and external interventions. Thanks to specialized locking and mounting apparatus, it offers an unopenable security structure after installation. The engineering-focused strainer design does not interrupt fuel flow even during high-flow refueling and does not extend the filling time.
Fuel Guard product groups offer universal dimensions and vehicle-specific options for every brand and model of vehicle operating with diesel, gasoline, and fuel oil.
FG-80/2.DT.SNSR.160 WITH SENSOR Structural and Functional Features
-
Heat-treated, hard alloy aluminum monoblock body
-
Locking system compatible with the original fuel cap
-
Claw-type locking model
-
Mechanical anti-siphon protection with a 4 mm thick strainer structure
-
Diesel-resistant, leak-proof NBR gasket
-
3 mm Allen key head setscrew and locked protection collar
-
High-flow system with a spherical dome base
-
Expansion and pressure prevention with a valved air system
-
Design preventing fuel siphoning from the top during full tank with a short strainer structure
-
Integrated protection connection for the cap chain
-
Impact-resistant, heavy-duty structure
FG-80/2.DT.SNSR.160 WITH SENSOR Compatible Vehicle Types
FG-80/2.DT.SNSR.160 WITH SENSOR Compatible Vehicle Brands
PDF Preparing
Starting...
This process may take up to 1 minute
FG-80/2.DT.SNSR.160 WITH SENSOR Technical Specifications (Global Standard)
-
Product Code: FG-80/2.DT.SNSR.160
-
Barcode Number: 88816626244
-
Brand: Fuel Guard
-
Manufacturer: Eren Teknik Otomotiv A.Ş.
-
Production Place: Turkey
-
Product Type: Fuel Security Lock
-
Body Material: Alloy Aluminum Material
-
Inlet Diameter: 43 mm
-
Product Length: 160 mm
-
Strainer Structure: 100 mm Length and 8 mm Thickness Horizontal Perforated Strainer + Spherical Dome Base
-
Fuel Flow Capacity: 100 lt / min
-
Sealing: Diesel Resistant Nitrile Gasket (NBR)
-
Ventilation: Valved Air Discharge and Pressure Balancing System
-
Mounting System: Claw Structure + 3 mm Allen Setscrew + Locked Protection Flange
-
Compatibility: 80 mm standard fuel tank necks
-
Durability: Impact and Corrosion Resistant, Heavy Duty Class
-
Assembly / Installation: Easy and Fast - No Drilling, Cutting or Welding Required
-
Warranty: 10-Year Fuel Guard Global Warranty Against Corrosion, Wear and Rust
FG-80/2.DT.SNSR.160 WITH SENSOR Package Contents
FG-80/2.DT.SNSR.160 WITH SENSOR
