FG-60-DD.ST. PASSWORD PROTECTED BOTTOM STRAINER
| Product Description

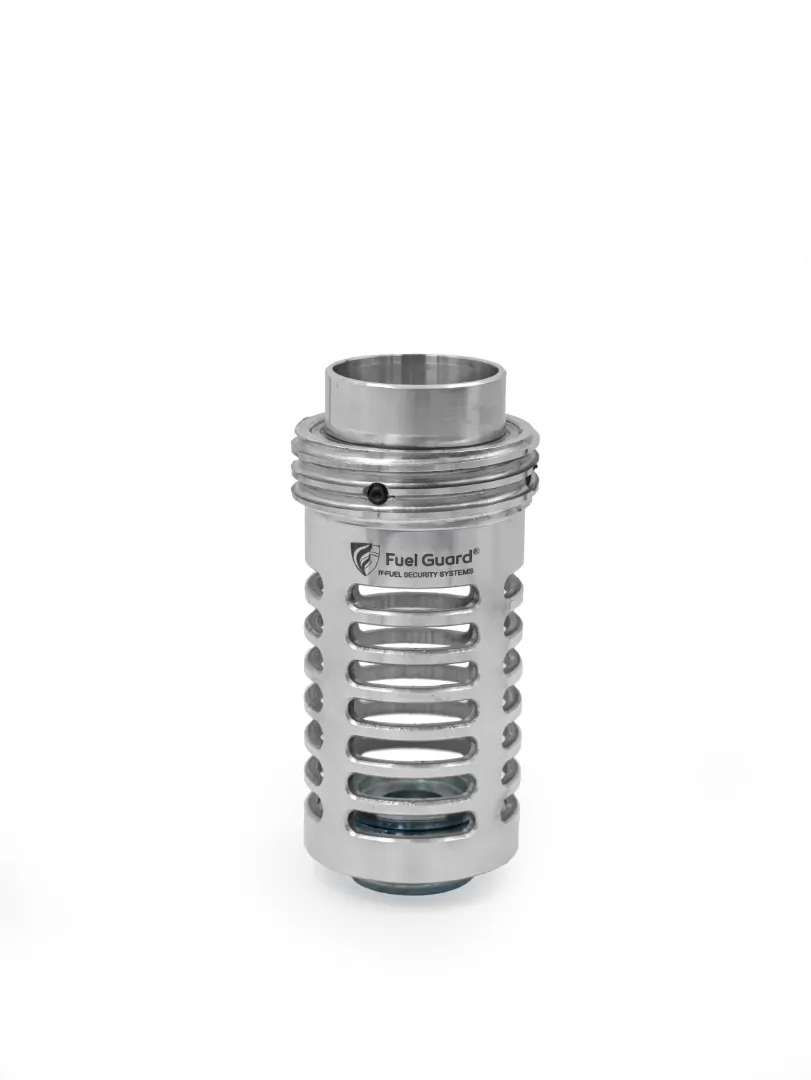

FG-60-DD.ST. PASSWORD PROTECTED BOTTOM STRAINER Fuel Guard Anti-Siphon Fuel Tank Inlet Security Lock is a professional fuel security solution developed to prevent fuel theft and unauthorized fuel siphoning from vehicle fuel tanks. Its specialized monoblock structure with an integrated strainer, installed at the fuel tank inlet, effectively prevents fuel siphoning via hoses.
Its high-quality aluminum body provides high resistance against impacts and external interventions. Thanks to specialized locking and mounting apparatus, it offers an unopenable security structure after installation. The engineering-focused strainer design does not interrupt fuel flow even during high-flow refueling and does not extend the filling time.
Fuel Guard product groups offer universal dimensions and vehicle-specific options for every brand and model of vehicle operating with diesel, gasoline, and fuel oil.
FG-60-DD.ST. PASSWORD PROTECTED BOTTOM STRAINER Structural and Functional Features
-
Heat-treated, hard alloy aluminum monoblock body
-
Locking system compatible with the original fuel cap
-
Lug-type locking model
-
Mechanical anti-siphon protection with 4 mm thick strainer structure
-
Fuel-resistant, leak-proof NBR gasket
-
Setscrew with 3 mm allen head and locked protection ring
-
High-flow system with spherical dome base
-
Expansion and pressure prevention with vented air system
-
Design preventing fuel theft from the top at full capacity with short strainer structure
-
Integrated protection connection for cap chain
-
Impact-resistant, heavy-duty structure
FG-60-DD.ST. PASSWORD PROTECTED BOTTOM STRAINER Compatible Vehicle Types
FG-60-DD.ST. PASSWORD PROTECTED BOTTOM STRAINER Compatible Vehicle Brands
PDF Preparing
Starting...
This process may take up to 1 minute
FG-60-DD.ST. PASSWORD PROTECTED BOTTOM STRAINER Technical Specifications (Global Standard)
-
Product Code: FG-60-DD.ST.
-
Barcode Number: 88816626244
-
Brand: Fuel Guard
-
Manufacturer: Eren Teknik Otomotiv A.Ş.
-
Production Place: Turkey
-
Product Type: Fuel Security Lock
-
Body Material: Alloy Aluminum Material
-
Inlet Diameter: 43 mm
-
Product Length: 170 mm
-
Strainer Structure: 100 mm Length and 8 mm Thickness Horizontal Perforated Strainer + Spherical Dome Base
-
Fuel Flow Capacity: 100 lt / MIN
-
Sealing: Fuel Resistant Nitrile Gasket (NBR)
-
Ventilation: Vented Air Discharge and Pressure Balancing System
-
Mounting System: Threaded Structure + 3 mm Allen Setscrew + Locked Protection Flange
-
Compatibility: 60 mm standard fuel tank necks
-
Durability: Impact and Corrosion Resistant, Heavy Duty Class
-
Assembly / Installation: Easy and Fast - No Drilling, Cutting or Welding Required
-
Warranty: 10-Year Fuel Guard Global Warranty Against Corrosion, Wear and Rust
FG-60-DD.ST. PASSWORD PROTECTED BOTTOM STRAINER Package Contents
FG-60-DD.ST. PASSWORD PROTECTED BOTTOM STRAINER
