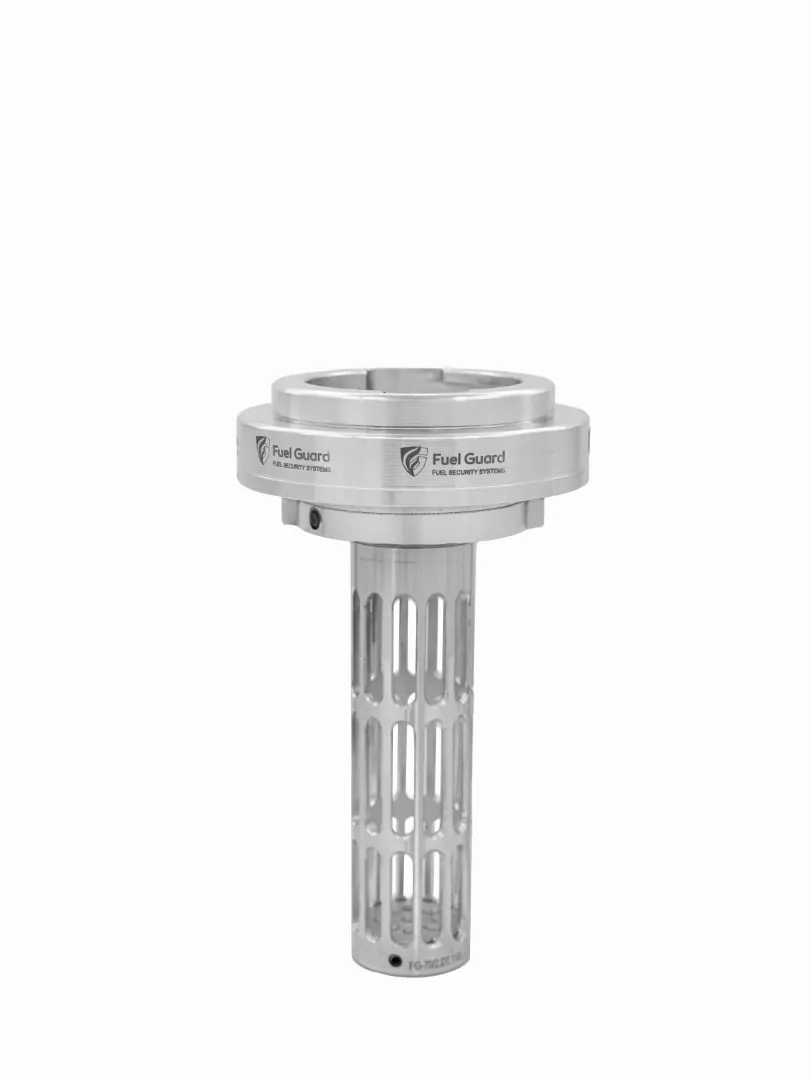

FG-70/2.DT.175 FINE STRAINER
| Product Description
FG-70/2.DT.175 FINE STRAINER Fuel Guard Anti-Siphon Fuel Tank Inlet Security Lock is a professional fuel security solution developed to prevent fuel theft and unauthorized fuel siphoning from vehicle fuel tanks. Its specialized monoblock structure with an integrated strainer, installed at the fuel tank inlet, effectively prevents fuel siphoning via hoses.
Its high-quality aluminum body provides high resistance against impacts and external interventions. Thanks to specialized locking and mounting apparatus, it offers an unopenable security structure after installation. The engineering-focused strainer design does not interrupt fuel flow even during high-flow refueling and does not extend the filling time.
Fuel Guard product groups offer universal dimensions and vehicle-specific options for every brand and model of vehicle operating with diesel, gasoline, and fuel oil.
FG-70/2.DT.175 FINE STRAINER Structural and Functional Features
-
Heat-treated, hard-alloy aluminum monoblock body
-
Locking system compatible with the original fuel cap
-
Lug-type locking model
-
Mechanical anti-siphon protection with 4 mm thick strainer structure
-
Fuel-resistant, leak-proof NBR gasket
-
3 mm Allen head set screw and locked protection collar
-
High-flow system with spherical dome base
-
Expansion and pressure prevention with vented air system
-
Short strainer design preventing fuel extraction from the top at full capacity
-
Integrated protection connection for the cap chain
-
Impact-resistant, heavy-duty structure
FG-70/2.DT.175 FINE STRAINER Compatible Vehicle Types
FG-70/2.DT.175 FINE STRAINER Compatible Vehicle Brands
PDF Preparing
Starting...
This process may take up to 1 minute
FG-70/2.DT.175 FINE STRAINER Technical Specifications (Global Standard)
-
Product Code: FG-70/2.DT.175
-
Barcode Number: 88816626244
-
Brand: Fuel Guard
-
Manufacturer: Eren Teknik Otomotiv A.Ş.
-
Place of Production: Turkey
-
Product Type: Fuel Security Lock
-
Body Material: Alloy Aluminum Material
-
Inlet Diameter: 43 mm
-
Product Length: 170 mm
-
Strainer Structure: 100 mm Length and 8 mm Thickness Horizontal Perforated Strainer + Spherical Dome Base
-
Fuel Flow Capacity: 100 lt / min
-
Sealing: Fuel-Resistant Nitrile Gasket (NBR)
-
Ventilation: Vented Air Discharge and Pressure Compensation System
-
Mounting System: External Threaded Structure + 3 mm Allen Set Screw + Locked Protection Flange
-
Compatibility: 60 mm standard fuel tank filler necks
-
Durability: Impact and Corrosion Resistant, Heavy-Duty Class
-
Assembly / Installation: Easy and Fast - No Drilling, Cutting, or Welding Required
-
Warranty: 10-Year Fuel Guard Global Warranty Against Corrosion, Wear, and Rust
FG-70/2.DT.175 FINE STRAINER Package Contents
FG-70/2.DT.175 FINE STRAINER
