FG-80/2.KT.230
| Product Description

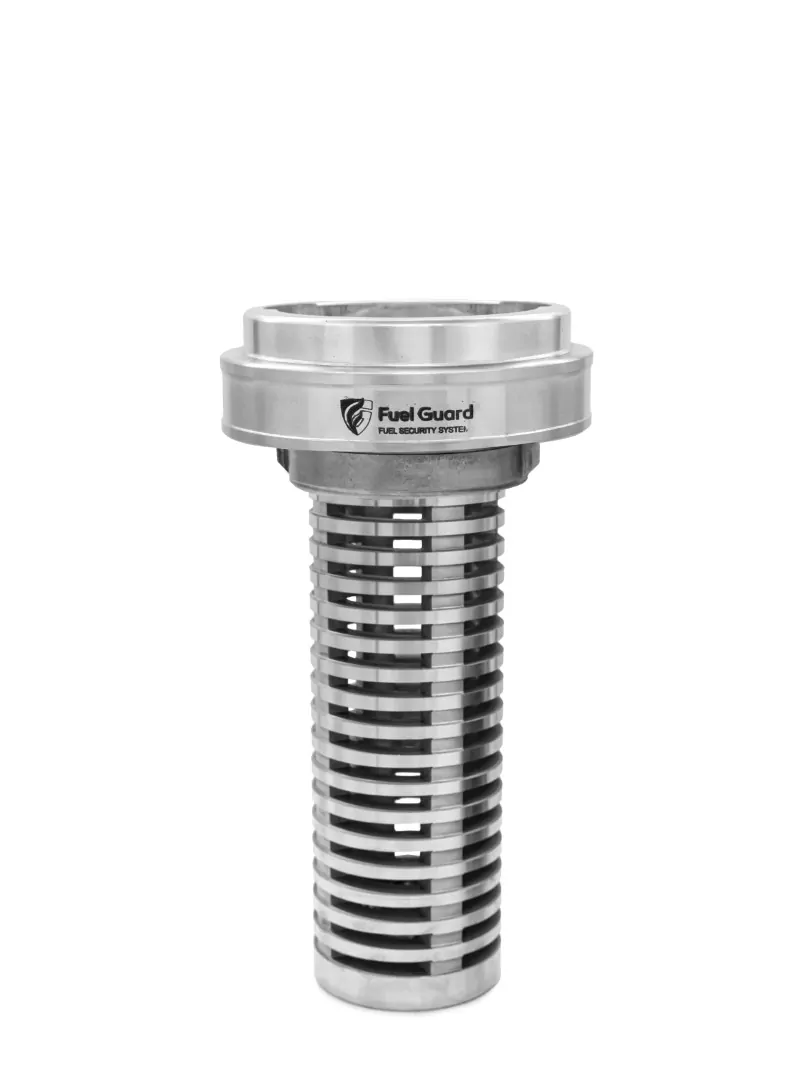

FG-80/2.KT.230 Fuel Guard Anti-Siphon Fuel Tank Inlet Security Lock is a professional fuel security solution developed to prevent fuel theft and unauthorized fuel siphoning from vehicle fuel tanks. Its specialized monoblock structure with an integrated strainer, installed at the fuel tank inlet, effectively prevents fuel siphoning via hoses.
Its high-quality aluminum body provides high resistance against impacts and external interventions. Thanks to specialized locking and mounting apparatus, it offers an unopenable security structure after installation. The engineering-focused strainer design does not interrupt fuel flow even during high-flow refueling and does not extend the filling time.
Fuel Guard product groups offer universal dimensions and vehicle-specific options for every brand and model of vehicle operating with diesel, gasoline, and fuel oil.
FG-80/2.KT.230 Structural and Functional Features
-
Heat-treated, high-strength aluminum alloy monoblock body
-
Locking system compatible with original fuel tank caps
-
Lug-type locking model
-
Mechanical anti-siphon protection with a 4 mm thick strainer structure
-
Fuel-resistant, leak-proof NBR gasket
-
3 mm Allen-head set screw and locked protection collar
-
High-flow rate system with a spherical dome base
-
Vented air system for expansion and pressure prevention
-
Short strainer design preventing fuel extraction from the top at full capacity
-
Integrated protection link for the cap chain
-
Impact-resistant, heavy-duty construction
FG-80/2.KT.230 Compatible Vehicle Types
FG-80/2.KT.230 Compatible Vehicle Brands
PDF Preparing
Starting...
This process may take up to 1 minute
FG-80/2.KT.230 Technical Specifications (Global Standard)
-
Product Code: FG-80/2.KT.230
-
Barcode Number: 88816626244
-
Brand: Fuel Guard
-
Manufacturer: Eren Teknik Otomotiv A.Ş.
-
Place of Manufacture: Turkey
-
Product Type: Fuel Security Lock
-
Body Material: Alloy Aluminum Material
-
Inlet Diameter: 43 mm
-
Product Length: 230 mm
-
Strainer Structure: 170 mm Long and 8 mm Thick Horizontal Perforated Strainer + Spherical Dome Base
-
Fuel Flow Capacity: 100 LT / DK
-
Sealing: Fuel-Resistant Nitrile Gasket (NBR)
-
Ventilation: Vented Air Discharge and Pressure Compensation System
-
Montaj Sistemi: External Threaded Structure + 3 mm Allen Set Screw + Locked Protection Flange
-
Compatibility: 80 mm standard fuel tank filler necks
-
Durability: Impact and Corrosion Resistant, Heavy-Duty Class
-
Assembly / Installation: Easy and Fast - No Drilling, Cutting, or Welding Required
-
Warranty: 10-Year Fuel Guard Global Warranty Against Corrosion, Wear, and Rust
FG-80/2.KT.230 Package Contents
FG-80/2.KT.230
