Fuel Tank Security Lock
Information: Tank caps may not be included with fuel tank security locks. Since this may vary by product, please contact us for detailed information.
| Product Description

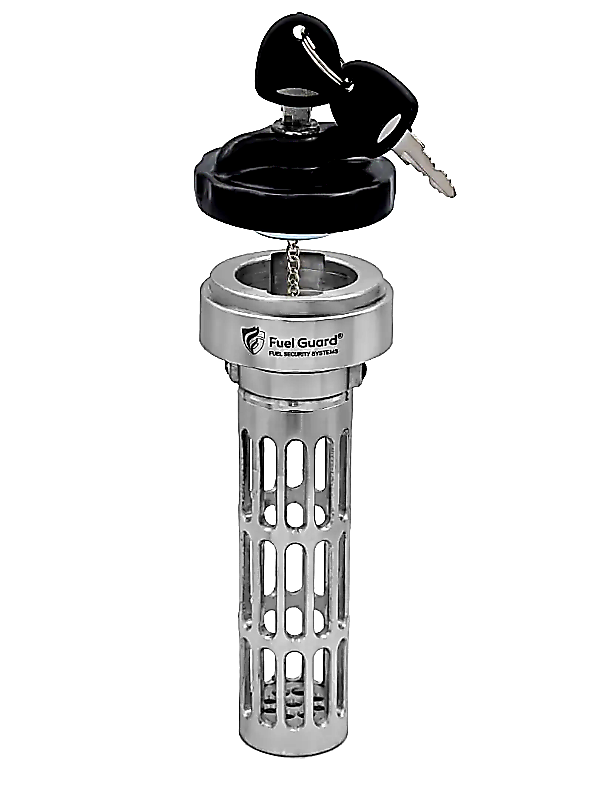

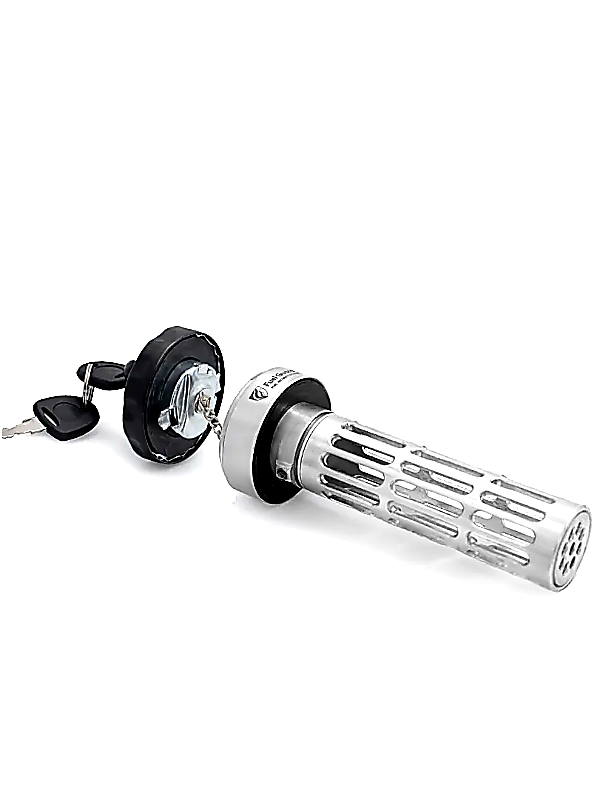

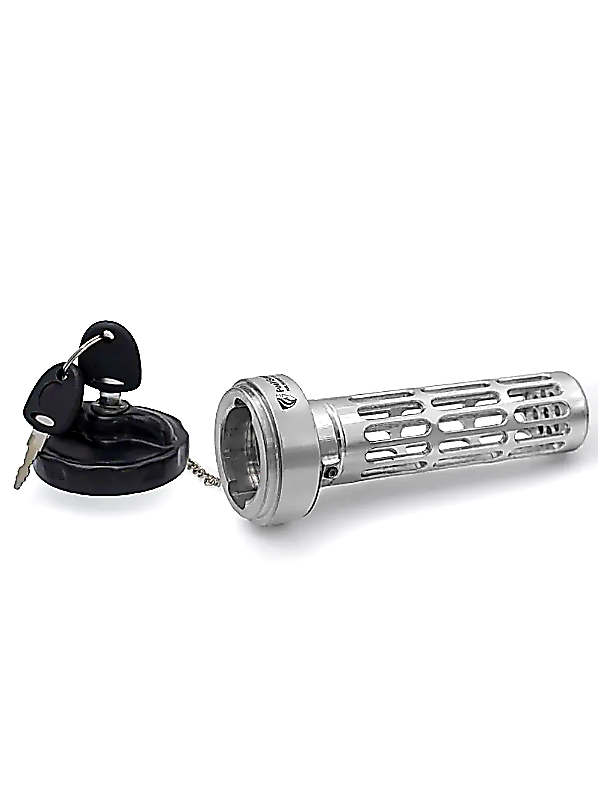

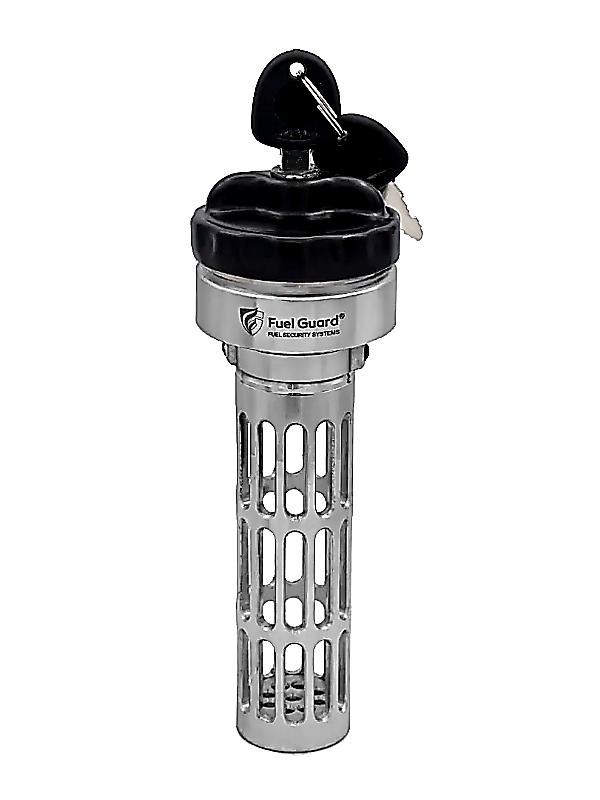

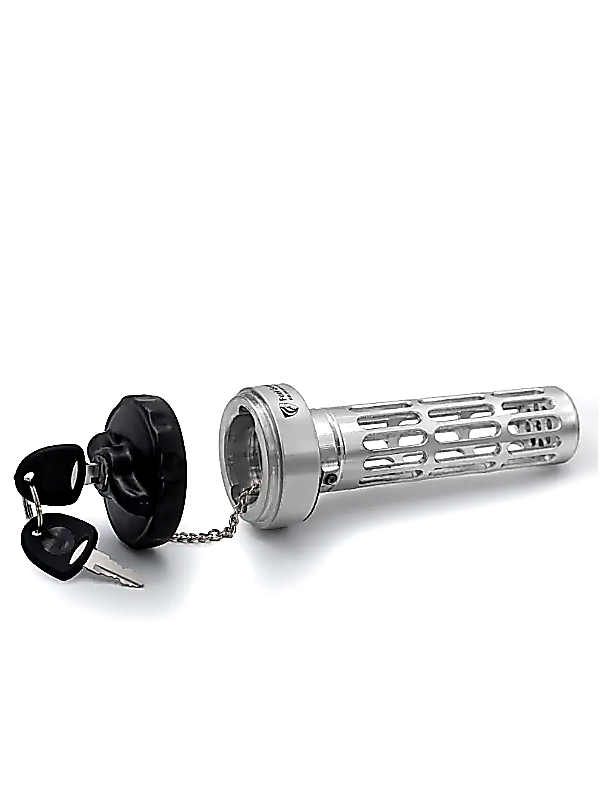

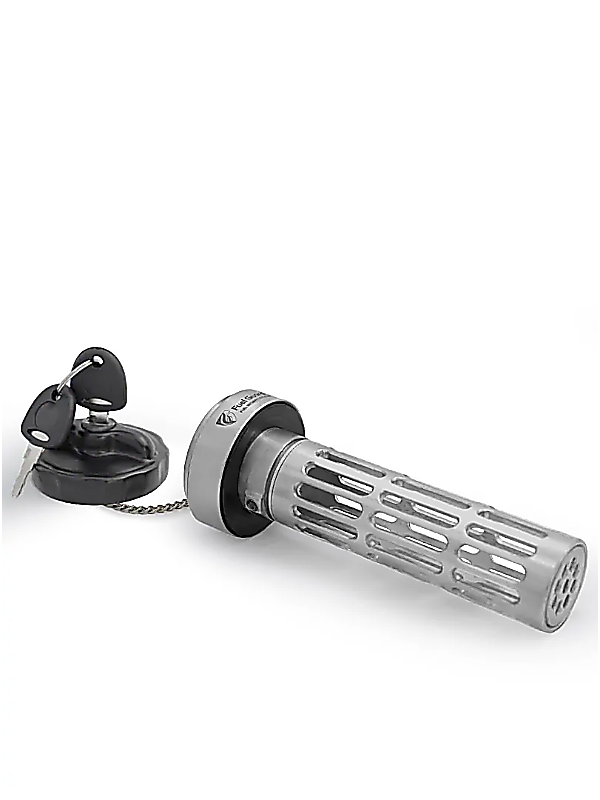

Fuel Guard Anti-Siphon Fuel Tank Filler Neck Security Lock is a professional fuel
security solution developed to prevent fuel theft and unauthorized fuel siphoning from vehicle fuel tanks.
Its special strainer-integrated monoblock structure integrated into the fuel filler neck,
effectively prevents fuel from being siphoned with a hose.
Its high-quality aluminum body provides high resistance
to impacts and external tampering. Thanks to its special locking and connection apparatus, it offers a security
structure that cannot be opened after installation. The engineering-focused strainer design does not interrupt fuel
flow even during high-flow refueling and does not extend refueling time.
Fuel Guard product groups offer universal sizes and vehicle-specific options for every make and model of vehicles running on diesel, gasoline, and fuel oil.
Fuel Tank Security Lock Structural and Functional Features
-
Heat-treated, hard alloy aluminum monoblock body
-
Locking system compatible with the original tank cap
-
Claw-type locking model
-
Mechanical anti-siphon protection with 4 mm thick strainer structure
-
Diesel-resistant, leak-proof NBR gasket
-
3 mm Allen key head set screw and lockable protective collar
-
High-flow system with spherical dome base
-
Expansion and pressure prevention with a vented air system
-
Design that prevents fuel from being siphoned from the top at full fill with a short strainer structure
-
Integrated protection attachment for the cap chain
-
Impact-resistant, heavy-duty construction
Fuel Tank Security Lock Compatible Vehicle Types
Pickup Truck
Truck
Bus
Midibus
Minibus
Panel Van
Construction Machinery
Fuel Tank Security Lock Compatible Vehicle Brands
BMC
CITROEN
DAEWOO
DAIHATSU
DFM
DODGE
FAW
FIAT
FORD
GAZ
GMC
HYUNDAI
IVECO
KIA
MAZDA
MERCEDES
MITSUBISHI
OTOKAR
OPEL
PEUGEOT
RENAULT
TATA
TEMSA
TEZELLER
TOYOTA
VOLKSWAGEN
Swipe to view
0%
PDF Preparing
Starting...
This process may take up to 1 minute
Fuel Tank Security Lock Technical Specifications (Global Standard)
-
Product Code: FG-40/2.DT.165
-
Barcode Number: 88816626244
-
Brand: Fuel Guard
-
Manufacturer: Eren Teknik Otomotiv A.Ş.
-
Place of Production: Turkey
-
Product Type: Fuel Security Lock
-
Body Material: Alloyed Aluminum Material
-
Inlet Diameter: 30 mm
-
Product Length: 165 mm
-
Strainer Structure: Horizontal perforated strainer 125 mm in length and 8 mm in thickness + spherical dome base
-
Fuel Flow Capacity: 80 L/min
-
Sealing: Diesel-resistant Nitrile Gasket (NBR)
-
Ventilation: Vented air discharge and pressure balancing system
-
Mounting System: Claw Structure + 3 mm Allen set screw + Lockable Protective Flange
-
Compatibility: 40 mm standard fuel tank necks
-
Durability: Impact and Corrosion Resistant, Heavy-Duty Class
-
Installation: Easy and Fast - No Drilling, Cutting or Welding Required
-
Warranty: 10-Year Fuel Guard Global Warranty Against Corrosion, Wear and Rust
Product Code
FG-40/2.DT.165
Barcode Number
88816626244
Brand
Fuel Guard
Manufacturer
Eren Teknik Otomotiv A.Ş.
Product Code
FG-40/2.DT.165
Barcode Number
88816626244
Brand
Fuel Guard
Manufacturer
Eren Teknik Otomotiv A.Ş.
Place of Production
Turkey
Product Type
Fuel Security Lock
Body Material
Alloyed Aluminum Material
Inlet Diameter
30 mm
Product Length
165 mm
Strainer Structure
Horizontal perforated strainer 125 mm in length and 8 mm in thickness + spherical dome base
Fuel Flow Capacity
80 L/min
Sealing
Diesel-resistant Nitrile Gasket (NBR)
Ventilation
Vented air discharge and pressure balancing system
Mounting System
Claw Structure + 3 mm Allen set screw + Lockable Protective Flange
Compatibility
40 mm standard fuel tank necks
Durability
Impact and Corrosion Resistant, Heavy-Duty Class
Installation
Easy and Fast - No Drilling, Cutting or Welding Required
Warranty
10-Year Fuel Guard Global Warranty Against Corrosion, Wear and Rust

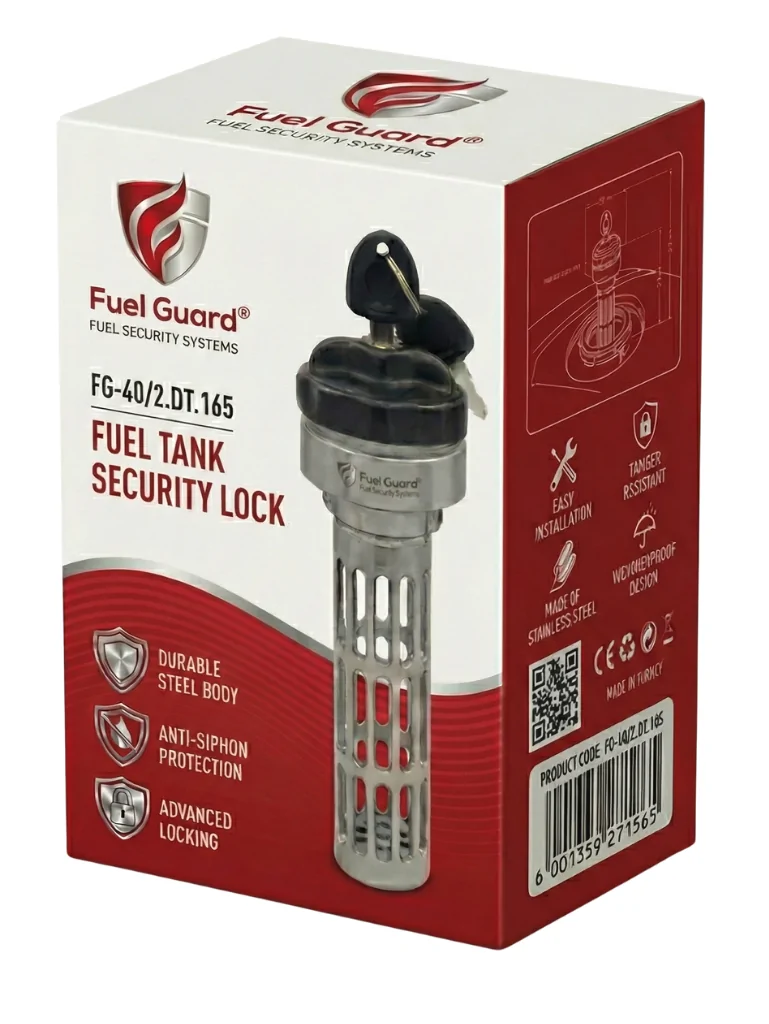

Fuel Tank Security Lock Package Contents
1 Piece Fuel Guard FG-40/2.DT.165 Fuel Security Device
Mounting set screws
Lockable set screw protective collar
Cap retaining chain
Installation manual and warranty card
