In Stock
Fuel Tank Security Lock
Information: Tank caps may not be included with fuel tank security locks. Since this may vary by product, please contact us for detailed information.
| Product Description
Fuel Guard Anti-Siphon Fuel Tank Filler Neck Security Lock is a professional fuel
security solution developed to prevent fuel theft and unauthorized fuel siphoning from vehicle fuel tanks.
Its special strainer-integrated monoblock structure integrated into the fuel filler neck,
effectively prevents fuel from being siphoned with a hose.
Its high-quality aluminum body provides high resistance
to impacts and external tampering. Thanks to its special locking and connection apparatus, it offers a security
structure that cannot be opened after installation. The engineering-focused strainer design does not interrupt fuel
flow even during high-flow refueling and does not extend refueling time.
Fuel Guard product groups offer universal sizes and vehicle-specific options for every make and model of vehicles running on diesel, gasoline, and fuel oil.
Fuel Tank Security Lock Structural and Functional Features
-
Heat-treated, hard alloy aluminum monoblock body
-
Locking system compatible with the original tank cap
-
Claw-type locking model
-
Mechanical anti-siphon protection with a 4 mm thick strainer structure
-
Diesel-resistant, leak-proof NBR gasket
-
3 mm Allen-key head set screw and locking protective ring
-
High-flow system with a spherical dome base
-
Expansion and pressure prevention with a vented air system
-
Design that prevents fuel from being siphoned from the top at full fill with a short strainer structure
-
Integrated protection connection for the cap chain
-
Impact-resistant, heavy-duty construction
Fuel Tank Security Lock Compatible Vehicle Types
Truck
Tractor Unit
Construction Equipment
Bus
Fuel Tank Security Lock Compatible Vehicle Brands
ASKAM
BMC
DAF
FATİH
FORD
IVECO
MACK
MAN
MERCEDES
RENAULT
VOLVO
AMMANN
ASIMATO
AVANT
BAĞSAN
FIAT
HİTACHİ
HİDROMEK
JOHN DEREE
JUNJIN
KATO
MECALAC
MST
RATRAC
TAKEUCHI
VENIERI
BMC
IVECO
MERCEDES
MAN
NEOPLAN
OTOKAR
TEMSA
Swipe to view
0%
PDF Preparing
Starting...
This process may take up to 1 minute

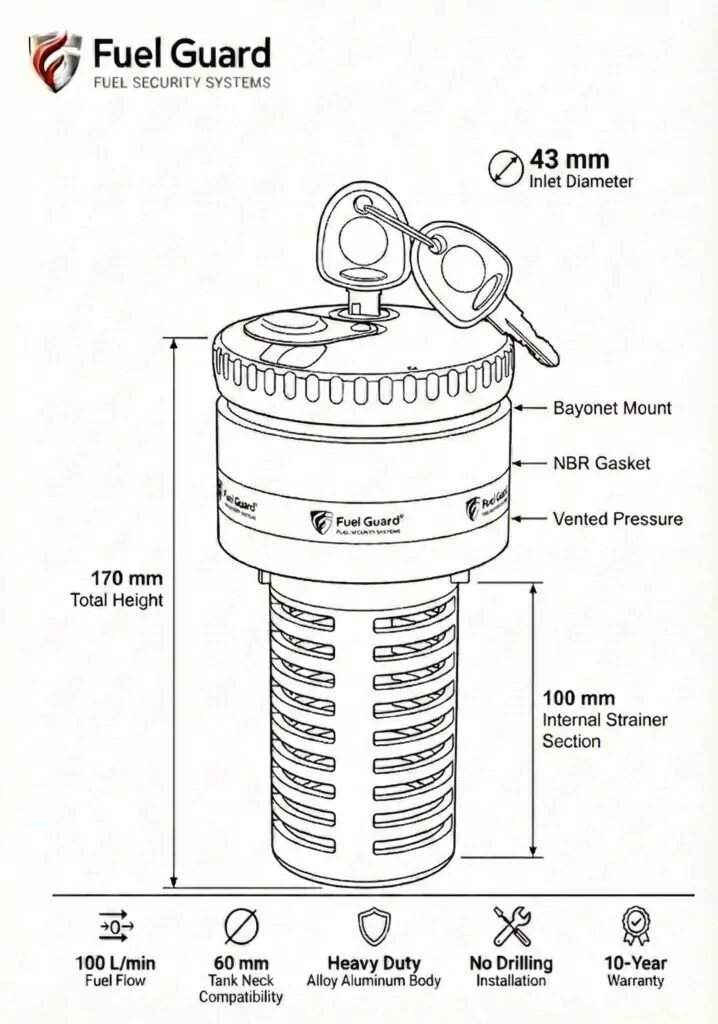

Fuel Tank Security Lock Technical Specifications (Global Standard)
-
Product Code: FG-60/2.KT.160
-
Barcode Number: 88816626244
-
Brand: Fuel Guard
-
Manufacturer: Eren Teknik Otomotiv A.Ş.
-
Country of Manufacture: Turkey
-
Product Type: Fuel Security Lock
-
Body Material: Alloyed Aluminum Material
-
Inlet Diameter: 43 mm
-
Product Length: 170 mm
-
Strainer Structure: Horizontally perforated strainer 100 mm long and 8 mm thick + spherical dome base
-
Fuel Flow Capacity: 100 L/min
-
Sealing: Diesel-resistant nitrile gasket (NBR)
-
Ventilation: Vented air discharge and pressure balancing system
-
Mounting System: Claw-type structure + 3 mm Allen set screw + locking protective flange
-
Compatibility: 60 mm standard fuel tank necks
-
Durability: Impact- and corrosion-resistant, heavy-duty class
-
Installation: Easy and fast - no drilling, cutting, or welding required
-
Warranty: 10-year Fuel Guard global warranty against corrosion, wear, and rust
Product Code
FG-60/2.KT.160
Barcode Number
88816626244
Brand
Fuel Guard
Manufacturer
Eren Teknik Otomotiv A.Ş.
Product Code
FG-60/2.KT.160
Barcode Number
88816626244
Brand
Fuel Guard
Manufacturer
Eren Teknik Otomotiv A.Ş.
Country of Manufacture
Turkey
Product Type
Fuel Security Lock
Body Material
Alloyed Aluminum Material
Inlet Diameter
43 mm
Product Length
170 mm
Strainer Structure
Horizontally perforated strainer 100 mm long and 8 mm thick + spherical dome base
Fuel Flow Capacity
100 L/min
Sealing
Diesel-resistant nitrile gasket (NBR)
Ventilation
Vented air discharge and pressure balancing system
Mounting System
Claw-type structure + 3 mm Allen set screw + locking protective flange
Compatibility
60 mm standard fuel tank necks
Durability
Impact- and corrosion-resistant, heavy-duty class
Installation
Easy and fast - no drilling, cutting, or welding required
Warranty
10-year Fuel Guard global warranty against corrosion, wear, and rust

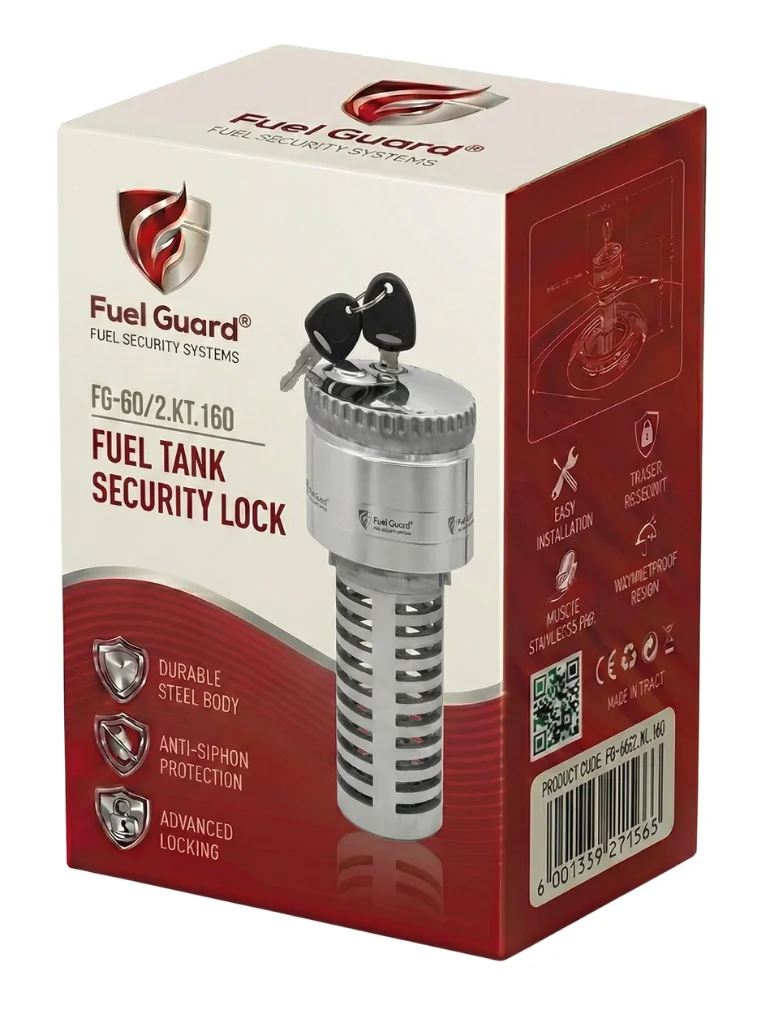

Fuel Tank Security Lock Package Contents
1 Piece Fuel Guard FG-60/2.KT.160 Fuel Security Device
Installation set screws
Locking set screw protective ring
Cap retaining chain
Installation manual and warranty card
Fuel Tank Security Lock
Official Manufacturer · FuelGuard
Product Barcode
Fuel Tank Security Lock
