In Stock
Fuel Tank Security Lock
Information: Tank caps may not be included with fuel tank security locks. Since this may vary by product, please contact us for detailed information.
| Product Description
Fuel Guard Anti-Siphon Fuel Tank Inlet Security Lock is a professional fuel security solution developed to prevent fuel theft and unauthorized fuel siphoning from vehicle fuel tanks.
Its special filtered monoblock structure, integrated into the fuel tank inlet, effectively prevents fuel from being siphoned with a hose.
Its high-quality aluminum body provides strong resistance against impacts and external interference.
Thanks to its special locking and connection apparatus, it offers a tamper-proof security structure after installation. Its engineering-focused filter design does not interrupt fuel flow even during high-flow refueling and does not extend refueling time.
Fuel Guard product groups offer universal sizes and vehicle-specific options for every brand and model vehicle running on diesel, gasoline, and fuel oil.
Fuel Tank Security Lock Structural and Functional Features
-
Heat-treated monoblock housing made of hard aluminum alloy
-
Locking system compatible with the original fuel cap
-
Locking model with claw mechanism
-
Mechanical anti-siphon protection with 4 mm thick mesh structure
-
Diesel-resistant, leak-proof NBR gasket
-
3 mm Allen screw and lockable protective collar
-
High-flow system with spherical dome base
-
Expansion and pressure protection via a ventilated air system
-
Design with a short mesh structure that prevents fuel from being siphoned from the top when fully filled
-
Integrated protective attachment for the cap chain
-
Impact-resistant heavy-duty construction
Fuel Tank Security Lock Compatible Vehicle Types
Truck
Tractor Unit
Construction Equipment
Bus
Fuel Tank Security Lock Compatible Vehicle Brands
ASKAM
BMC
DAF
FATİH
FORD
IVECO
MACK
MAN
MERCEDES
RENAULT
VOLVO
AMMANN
BITELLI
BOMAG
CASAGRANDE
COMACCHIO
CMI
DYNAPAC
EVERDIGM
HIDROMEK
HAGGLUNGS
HITACHI
JCB
KAWASAKI
LIEBHERR
PISTENBULLY
ROADTEC
SANDVIK
SUMITOMO
TAMROCK
VOLVO
VOGELE
VIBROMAX
VIRTGEN
IVECO
MERCEDES
MAN
NEOPLAN
OTOKAR
TEMSA
Swipe to view

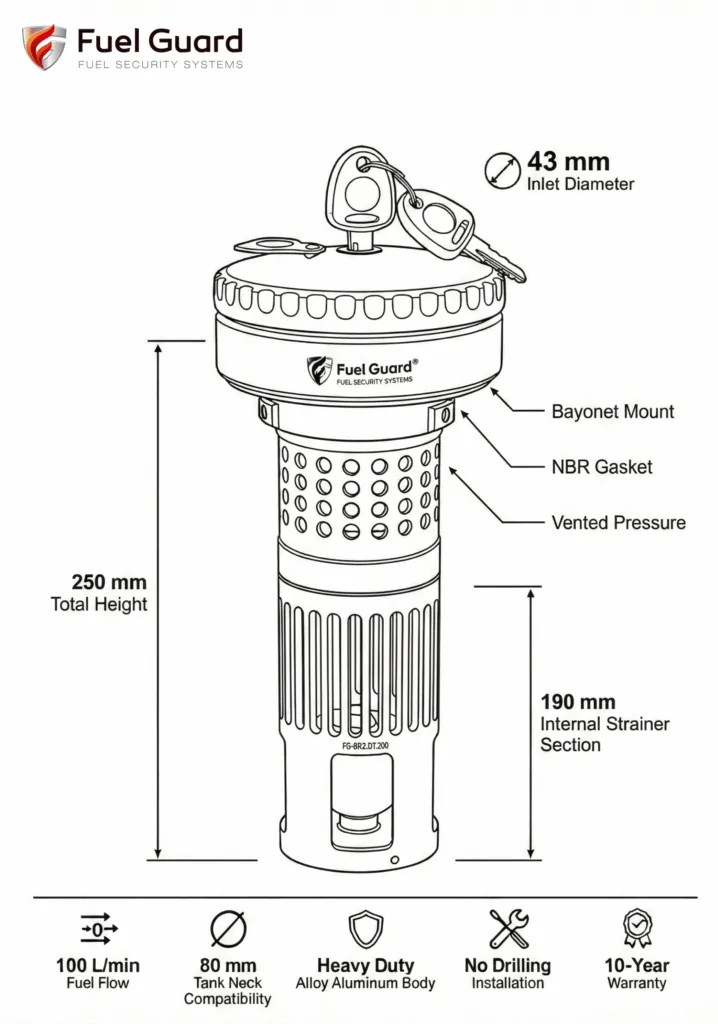

Fuel Tank Security Lock Technical Specifications (Global Standard)
-
Product code: FG-80/2.DT.200
-
Barcode number: 88816626244
-
Brand: Fuel Guard
-
Manufacturer: Eren Teknik Otomotiv A.Ş.
-
Place of manufacture: Türkiye
-
Product type: Fuel security lock
-
Housing material: Alloy aluminum material
-
Inlet diameter: 43 mm
-
Product length: 170 mm
-
Screen structure: Horizontally perforated screen with 100 mm length and 8 mm thickness + spherical dome base
-
Fuel flow capacity: 100 lt / min
-
Sealing: Diesel-resistant nitrile seal (NBR)
-
Ventilation: Vented air release and pressure equalization system
-
Mounting system: Threaded structure + 3 mm Allen screw + lockable protective flange
-
Compatibility: 60 mm standard tank filler neck
-
Durability: Impact- and corrosion-resistant, heavy-duty class
-
Installation / setup: Easy and fast - no drilling, cutting, or welding required
-
Warranty: 10-year global Fuel Guard warranty against corrosion, wear, and rust
Product code
FG-80/2.DT.200
Barcode number
88816626244
Brand
Fuel Guard
Manufacturer
Eren Teknik Otomotiv A.Ş.
Product code
FG-80/2.DT.200
Barcode number
88816626244
Brand
Fuel Guard
Manufacturer
Eren Teknik Otomotiv A.Ş.
Place of manufacture
Türkiye
Product type
Fuel security lock
Housing material
Alloy aluminum material
Inlet diameter
43 mm
Product length
170 mm
Screen structure
Horizontally perforated screen with 100 mm length and 8 mm thickness + spherical dome base
Fuel flow capacity
100 lt / min
Sealing
Diesel-resistant nitrile seal (NBR)
Ventilation
Vented air release and pressure equalization system
Mounting system
Threaded structure + 3 mm Allen screw + lockable protective flange
Compatibility
60 mm standard tank filler neck
Durability
Impact- and corrosion-resistant, heavy-duty class
Installation / setup
Easy and fast - no drilling, cutting, or welding required
Warranty
10-year global Fuel Guard warranty against corrosion, wear, and rust

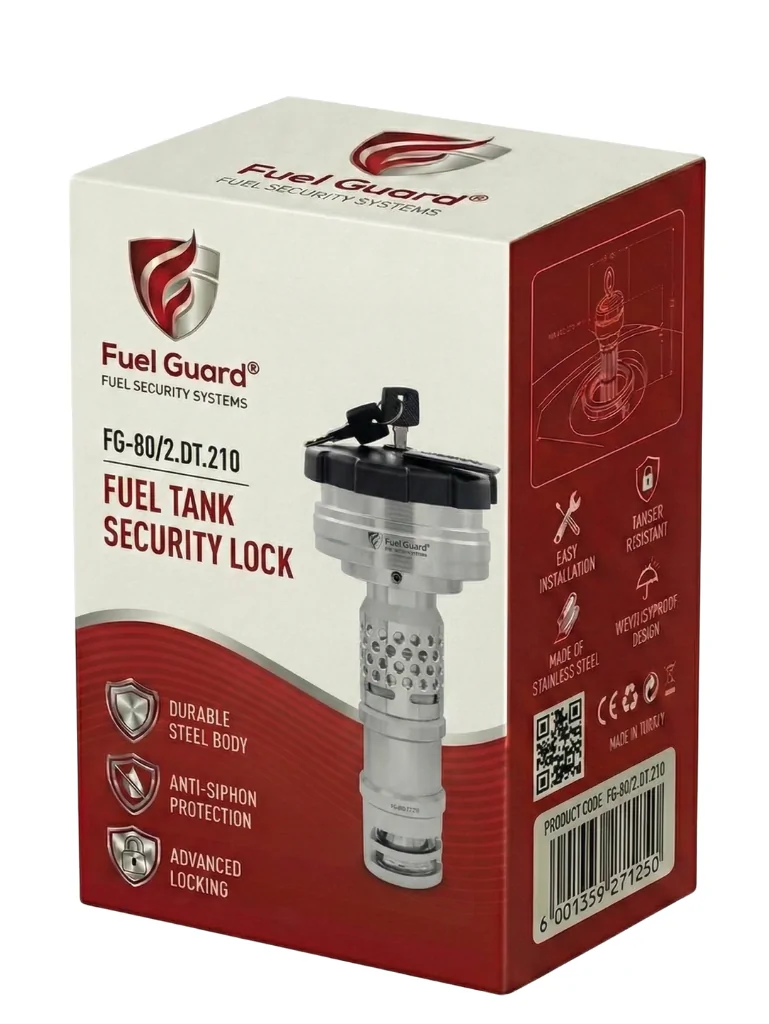

Fuel Tank Security Lock Package Contents
1 unit Fuel Guard FG-80/2.DT.210 fuel security device
Mounting set screws
Lockable protective collar for set screw
Retaining chain for the cap
Installation instructions and warranty card
Product Barcode
Fuel Tank Security Lock
Truck
Truck – Pickup Truck
Bus – Midibus – Minibus
Construction Machinery
Agricultural and Farming Vehicles
Generator and Power Equipment
