Fuel Tank Security Lock (Integrated with Vehicle Identification System)
Information: Tank caps may not be included with fuel tank security locks. Since this may vary by product, please contact us for detailed information.
| Product Description
Fuel Guard Anti-Siphon Fuel Tank Filler Neck Security Lock is a professional fuel
security solution developed to prevent fuel theft and unauthorized fuel siphoning from vehicle fuel tanks.
Its special strainer-integrated monoblock structure integrated into the fuel filler neck,
effectively prevents fuel from being siphoned with a hose.
Its high-quality aluminum body provides high resistance
to impacts and external tampering. Thanks to its special locking and connection apparatus, it offers a security
structure that cannot be opened after installation. The engineering-focused strainer design does not interrupt fuel
flow even during high-flow refueling and does not extend refueling time.
Fuel Guard product groups offer universal sizes and vehicle-specific options for every make and model of vehicles running on diesel, gasoline, and fuel oil.
Fuel Tank Security Lock (Integrated with Vehicle Identification System) Structural and Functional Features
-
Heat-treated, hard alloy aluminum monoblock body
-
Locking system compatible with the original tank cap
-
Claw-type locking model
-
Mechanical anti-siphon protection with 4 mm thick strainer structure
-
Diesel-resistant, leak-proof NBR gasket
-
3 mm Allen-head set screw and locking protective collar
-
High-flow system with spherical dome base
-
Expansion and pressure prevention with valved air system
-
Design preventing fuel extraction from the top at full fill with short strainer structure
-
Integrated protection attachment for cap chain
-
Impact-resistant, heavy-duty construction
Fuel Tank Security Lock (Integrated with Vehicle Identification System) Compatible Vehicle Types
Truck
Tractor Unit
Construction Equipment
Bus
Refrigerated Trailer
Fuel Tank Security Lock (Integrated with Vehicle Identification System) Compatible Vehicle Brands
Scania
Krone
Schmitz
MST
New Holland
Swipe to view
0%
PDF Preparing
Starting...
This process may take up to 1 minute

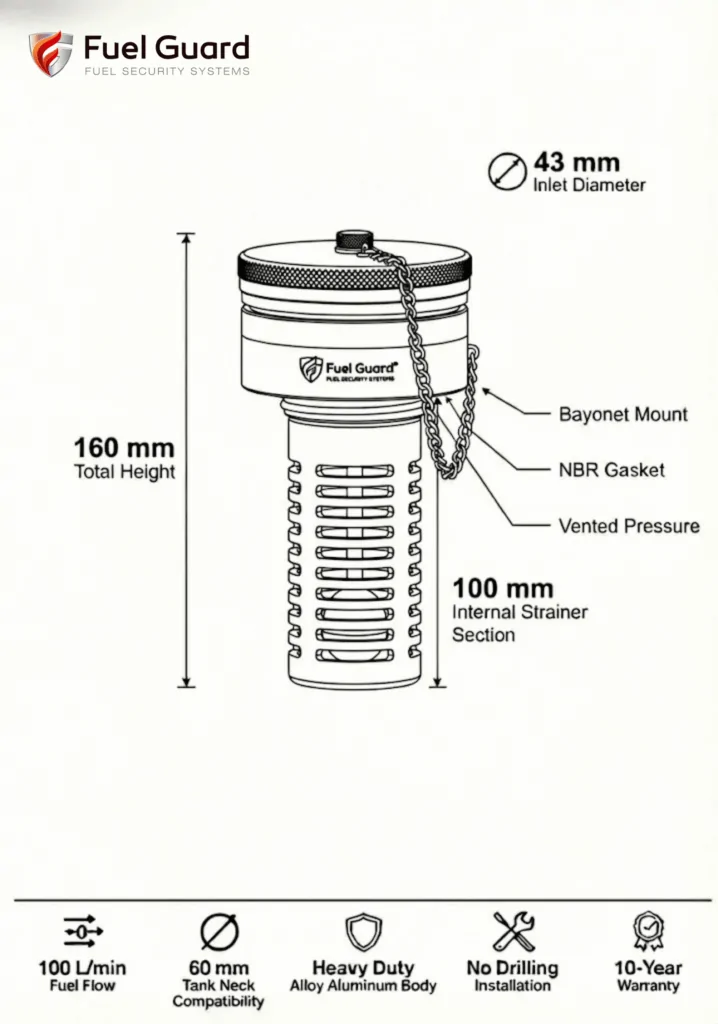

Fuel Tank Security Lock (Integrated with Vehicle Identification System) Technical Specifications (Global Standard)
-
Product Code: FG-60/DD.DT.KP.160
-
Barcode Number: 88816626244
-
Brand: Fuel Guard
-
Manufacturer: Eren Teknik Otomotiv A.Ş.
-
Place of Production: Turkey
-
Product Type: Fuel Security Lock
-
Body Material: Alloy Aluminum Material
-
Inlet Diameter: 43 mm
-
Product Length: 160 mm
-
Strainer Structure: Horizontally Perforated Strainer 100 mm Length and 8 mm Thickness + Spherical Dome Base
-
Fuel Flow Capacity: 100 lt / min
-
Sealing: Diesel-Resistant Nitrile Gasket (NBR)
-
Ventilation: Valved Air Discharge and Pressure Balancing System
-
Mounting System: Threaded Structure + 3 mm Allen Set Screw + Locking Protective Flange
-
Compatibility: 60 mm standard fuel tank necks
-
Durability: Impact and Corrosion Resistant, Heavy-Duty Class
-
Installation / Setup: Easy and Fast - Does Not Require Drilling, Cutting, or Welding
-
Warranty: 10-Year Fuel Guard Global Warranty Against Corrosion, Wear, and Rust
Product Code
FG-60/DD.DT.KP.160
Barcode Number
88816626244
Brand
Fuel Guard
Manufacturer
Eren Teknik Otomotiv A.Ş.
Product Code
FG-60/DD.DT.KP.160
Barcode Number
88816626244
Brand
Fuel Guard
Manufacturer
Eren Teknik Otomotiv A.Ş.
Place of Production
Turkey
Product Type
Fuel Security Lock
Body Material
Alloy Aluminum Material
Inlet Diameter
43 mm
Product Length
160 mm
Strainer Structure
Horizontally Perforated Strainer 100 mm Length and 8 mm Thickness + Spherical Dome Base
Fuel Flow Capacity
100 lt / min
Sealing
Diesel-Resistant Nitrile Gasket (NBR)
Ventilation
Valved Air Discharge and Pressure Balancing System
Mounting System
Threaded Structure + 3 mm Allen Set Screw + Locking Protective Flange
Compatibility
60 mm standard fuel tank necks
Durability
Impact and Corrosion Resistant, Heavy-Duty Class
Installation / Setup
Easy and Fast - Does Not Require Drilling, Cutting, or Welding
Warranty
10-Year Fuel Guard Global Warranty Against Corrosion, Wear, and Rust
Fuel Tank Security Lock (Integrated with Vehicle Identification System) Package Contents
1 Piece Fuel Guard FG-60/DD.DT.KP.160 Fuel Security Device
Mounting set screws
Locking set screw protective collar
Cap retaining chain
Installation manual and warranty card
