In Stock
Fuel Tank Security Lock (Aluminum Geared Cap)
Information: Tank caps may not be included with fuel tank security locks. Since this may vary by product, please contact us for detailed information.
| Product Description
Fuel Guard Anti-Siphon Fuel Tank Neck Security Lock is a professional fuel security solution developed to prevent fuel theft and unauthorized fuel siphoning from vehicle fuel tanks.
Its special monoblock structure with an integrated filter, installed in the fuel tank neck,
effectively prevents fuel from being siphoned with a hose.
Its high-quality aluminum body provides high resistance against impacts and external interference.
Thanks to its special locking and connection components, it offers a tamper-proof security
structure after installation. Its engineering-focused filter design does not interrupt fuel
flow even during high-flow refueling and does not extend refueling time.
Fuel Guard product groups offer universal sizes and vehicle-specific options for every brand and model vehicle running on diesel, gasoline, and fuel oil.
Fuel Tank Security Lock (Aluminum Geared Cap) Structural and Functional Features
-
Heat-treated monoblock housing made of hard aluminum alloy
-
Locking system compatible with the original fuel cap
-
Locking model with claw mechanism
-
Mechanical anti-siphon protection with 4 mm thick mesh structure
-
Diesel-resistant, leak-proof NBR gasket
-
3 mm Allen set screw and locked protective ring
-
High-flow system with spherical dome base
-
Expansion and pressure protection through a ventilated air system
-
Design with a short mesh structure that prevents fuel from being removed from above when fully filled
-
Integrated protective connection for the cap chain
-
Impact-resistant heavy-duty construction
Fuel Tank Security Lock (Aluminum Geared Cap) Compatible Vehicle Types
Truck
Tractor Unit
Construction Equipment
Bus
Fuel Tank Security Lock (Aluminum Geared Cap) Compatible Vehicle Brands
ASKAM
BMC
DAF
FATİH
FORD
IVECO
MACK
MAN
MERCEDES
RENAULT
VOLVO
KAWASAKI
HITACHI
HIDROMEK
SANDVIK
BOMAG
VOGELE
TEMSA
NEOPLAN
AMMANN
VIBROMAX
TAMROCK
JCB
Swipe to view

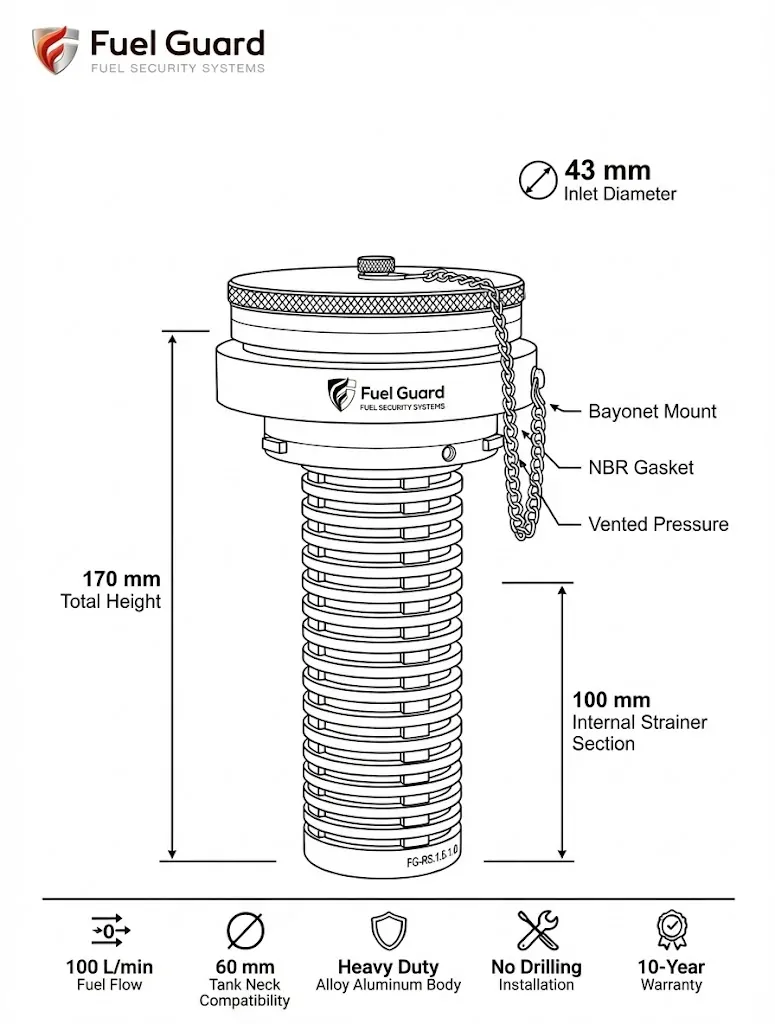

Fuel Tank Security Lock (Aluminum Geared Cap) Technical Specifications (Global Standard)
-
Product code: 90/3
-
Barcode number: 88816626244
-
Brand: Fuel Guard
-
Manufacturer: Eren Teknik Otomotiv A.Ş.
-
Country of origin: Türkiye
-
Product type: Fuel security lock
-
Housing material: Alloyed aluminum
-
Inlet diameter: 43 mm
-
Product length: 170 mm
-
Screen structure: 100 mm length and 8 mm thickness, horizontally perforated screen + spherical dome base
-
Fuel flow capacity: 100 L/min
-
Seal: Diesel-resistant nitrile seal (NBR)
-
Ventilation: Vented air release and pressure equalization system
-
Mounting system: Threaded structure + 3 mm Allen set screw + locking protective flange
-
Compatibility: 60 mm standard tank filler neck
-
Durability: Impact- and corrosion-resistant, heavy-duty class
-
Installation / Setup: Easy and quick - no drilling, cutting, or welding required
-
Warranty: 10-year global Fuel Guard warranty against corrosion, wear, and rust
Product code
90/3
Barcode number
88816626244
Brand
Fuel Guard
Manufacturer
Eren Teknik Otomotiv A.Ş.
Product code
90/3
Barcode number
88816626244
Brand
Fuel Guard
Manufacturer
Eren Teknik Otomotiv A.Ş.
Country of origin
Türkiye
Product type
Fuel security lock
Housing material
Alloyed aluminum
Inlet diameter
43 mm
Product length
170 mm
Screen structure
100 mm length and 8 mm thickness, horizontally perforated screen + spherical dome base
Fuel flow capacity
100 L/min
Seal
Diesel-resistant nitrile seal (NBR)
Ventilation
Vented air release and pressure equalization system
Mounting system
Threaded structure + 3 mm Allen set screw + locking protective flange
Compatibility
60 mm standard tank filler neck
Durability
Impact- and corrosion-resistant, heavy-duty class
Installation / Setup
Easy and quick - no drilling, cutting, or welding required
Warranty
10-year global Fuel Guard warranty against corrosion, wear, and rust

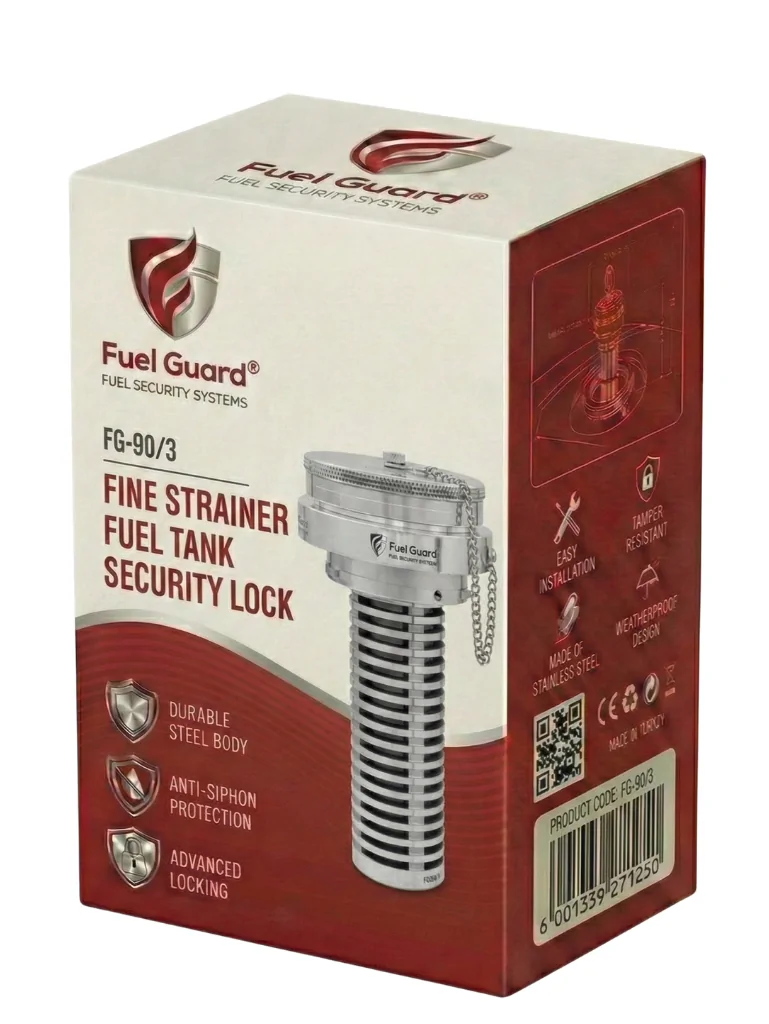

Fuel Tank Security Lock (Aluminum Geared Cap) Package Contents
1 piece Fuel Guard 90/3 fuel security device
Mounting set screws
Protective ring for the locking set screw
Retaining chain for the cap
Installation instructions and warranty card
Product Barcode
Fuel Tank Security Lock (Aluminum Geared Cap)
Truck
Truck – Pickup Truck
Bus – Midibus – Minibus
Construction Machinery
Agricultural and Farming Vehicles
Generator and Power Equipment
