FG-70/2.DT.180 Technical Detail - FuelGuard

In Stock

FG-70/2.DT.180

FG-70/2.DT.180 | Product Description

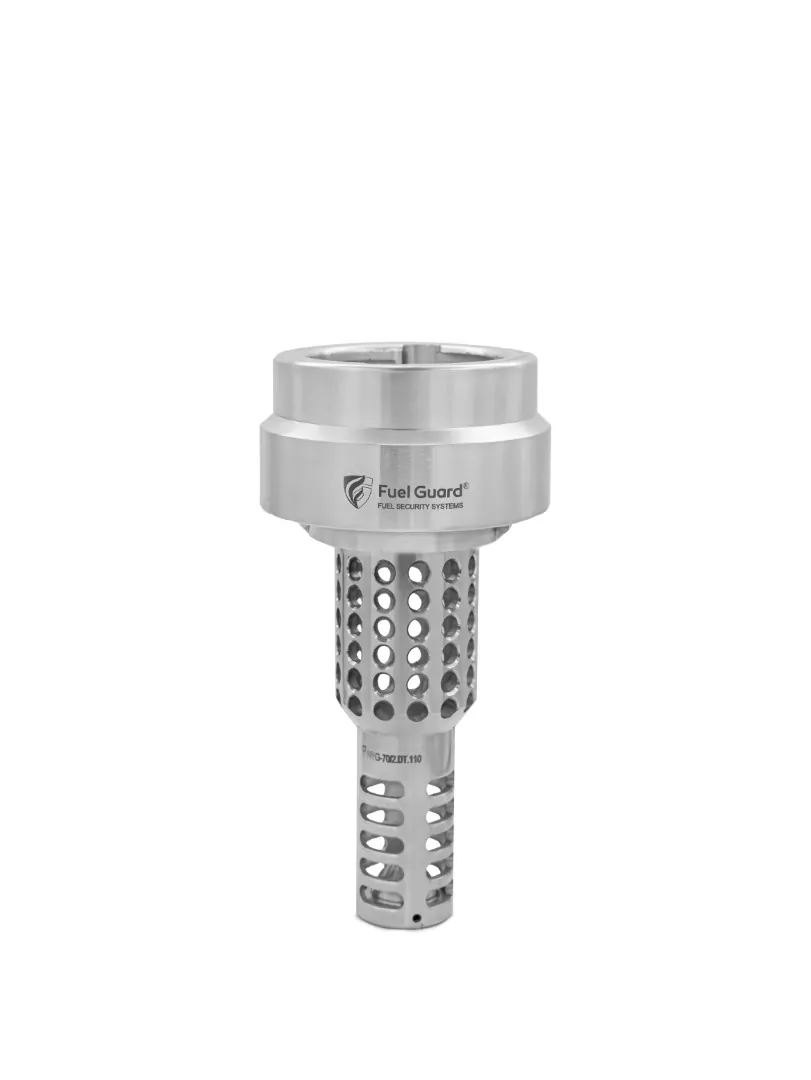

FG-70/2.DT.180 Fuel Guard Anti-Siphon Fuel Tank Inlet Security Lock is a professional fuel security solution developed to prevent fuel theft and unauthorized fuel siphoning from vehicle fuel tanks. Its specialized monoblock structure with an integrated strainer, installed at the fuel tank inlet, effectively prevents fuel siphoning via hoses.

Its high-quality aluminum body provides high resistance against impacts and external interventions. Thanks to specialized locking and mounting apparatus, it offers an unopenable security structure after installation. The engineering-focused strainer design does not interrupt fuel flow even during high-flow refueling and does not extend the filling time.

Fuel Guard product groups offer universal dimensions and vehicle-specific options for every brand and model of vehicle operating with diesel, gasoline, and fuel oil.

View Technical Details View Installation Guide

Please contact for price information

$ USD € EUR ₺ TL

Inlet Diameter / Length 43 mm / -

Body Alaşımlı Alüminyum Malzeme

Fuel Flow Capacity -

Delivery Countries

Turkey

Germany

USA

United Kingdom

France

Italy

Spain

Netherlands

Russia

Azerbaijan

Ukraine

Kazakhstan

Georgia

Iraq

Canada

Turkey

Germany

USA

United Kingdom

France

Italy

Spain

Netherlands

Russia

Azerbaijan

Ukraine

Kazakhstan

Georgia

Iraq

Canada

Turkey

Germany

USA

United Kingdom

France

Italy

Spain

Netherlands

Russia

Azerbaijan

Ukraine

Kazakhstan

Georgia

Iraq

Canada

Delivery in all countries

FuelGuard

Official Manufacturer

4.9

View Store

This Product

FG-70/2.DT.180 Structural and Functional Features

Heat-treated, hard alloy aluminum monoblock body
Locking system compatible with the original fuel cap
Lug-type locking model
Mechanical anti-siphon protection with 4 mm thick strainer structure
Diesel-resistant, leak-proof NBR gasket
3 mm Allen head set screw and locked protection collar
Spherical dome-based high-flow system
Expansion and pressure prevention with vented air system
Short strainer design preventing fuel extraction from the top at full capacity
Integrated protection connection for the cap chain
Impact-resistant, heavy-duty structure

Heat-treated, hard alloy aluminum monoblock body

Locking system compatible with the original fuel cap

Lug-type locking model

Mechanical anti-siphon protection with 4 mm thick strainer structure

FG-70/2.DT.180 Compatible Vehicle Types

Truck

Pickup Truck

Construction Machinery

Truck

Pickup Truck

Construction Machinery

FG-70/2.DT.180 Compatible Vehicle Brands

ISUZU N-WIDE

ISUZU NKR

ISUZU NLR

ISUZU NPR

ISUZU NQR

ISUZU TORA

OTOKAR ATLAS

HYUNDAI EKSKAVATÖR

HYUNDAI LOADER/BEKOLADER

KUBOTA MİNİ EKSKAVATÖR/KEPÇE

ISUZU N-WIDE

ISUZU NKR

ISUZU NLR

ISUZU NPR

ISUZU NQR

ISUZU TORA

OTOKAR ATLAS

HYUNDAI EKSKAVATÖR

HYUNDAI LOADER/BEKOLADER

KUBOTA MİNİ EKSKAVATÖR/KEPÇE

Swipe to view

FG-70/2.DT.180 Technical Specifications (Global Standard)

Product Code: FG-70/2.DT.180
Barcode Number: 88816626244
Brand: Fuel Guard
Manufacturer: Eren Teknik Otomotiv A.Ş.
Place of Manufacture: Turkey
Product Type: Fuel Security Lock
Body Material: Alloy Aluminum Material
Inlet Diameter: 43 mm
Product Length: 170 mm
Strainer Structure: 100 mm Length and 8 mm Thickness Horizontal Perforated Strainer + Spherical Dome Base
Fuel Flow Capacity: 100 lt / MIN
Sealing: Diesel Resistant Nitrile Gasket (NBR)
Ventilation: Vented Air Discharge and Pressure Balancing System
Mounting System: External Threaded Structure + 3 mm Allen Setscrew + Locked Protection Flange
Compatibility: 70 mm standard fuel tank necks
Durability: Impact and Corrosion Resistant, Heavy Duty Class
Mounting / Installation: Easy and Fast - No Drilling, Cutting or Welding Required
Warranty: 10-Year Fuel Guard Global Warranty Against Corrosion, Wear and Rusting

Product Code FG-70/2.DT.180

Barcode Number 88816626244

Brand Fuel Guard

Manufacturer Eren Teknik Otomotiv A.Ş.

Product Code

FG-70/2.DT.180

Barcode Number

88816626244

Brand

Fuel Guard

Manufacturer

Eren Teknik Otomotiv A.Ş.

Place of Manufacture

Turkey

Product Type

Fuel Security Lock

Body Material

Alloy Aluminum Material

Inlet Diameter

43 mm

Product Length

170 mm

Strainer Structure

100 mm Length and 8 mm Thickness Horizontal Perforated Strainer + Spherical Dome Base

Fuel Flow Capacity

100 lt / MIN

Sealing

Diesel Resistant Nitrile Gasket (NBR)

Ventilation

Vented Air Discharge and Pressure Balancing System

Mounting System

External Threaded Structure + 3 mm Allen Setscrew + Locked Protection Flange

Compatibility

70 mm standard fuel tank necks

Durability

Impact and Corrosion Resistant, Heavy Duty Class

Mounting / Installation

Easy and Fast - No Drilling, Cutting or Welding Required

Warranty

10-Year Fuel Guard Global Warranty Against Corrosion, Wear and Rusting

FG-70/2.DT.180

FuelGuard Professional Fuel Security Systems Installation Guide

Installation Guide & Usage

STEP 1

1. Pre-Installation Preparation

IMPORTANT: Fuel Guard is a system integrated into the tank neck (filler neck) without altering the vehicle's original structure. Once installation is complete, the system takes on a "Non-Removable" security structure.

Safety: Pull the vehicle onto a flat surface and stop the engine. Strictly do not smoke or approach with open flame in the work area.

Required Equipment: 3 mm Allen key, Diesel-resistant liquid gasket or silicone, Fine-tipped screwdriver and light hammer, Cleaning cloth / Rag

Cleaning: Completely wipe dry any fuel residues and dust at the tank opening with a clean cloth.

STEP 1: Tank Opening Preparation and Insulation

Remove the existing tank cap and any old apparatus inside if present.
Critical Warning: Apply a thin line of diesel-resistant silicone to the tank neck surface to prevent fuel leakage and sweating.

STEP 2: Body Placement (Mechanical Lock)

Place the Fuel Guard body vertically onto the tank neck. Align the tabbed system with its slot; turn clockwise (to the right) to ensure the tabs fully lock onto the tank neck.

STEP 3: Fixing with Set Screw

Start tightening the 3 mm Allen head set screws located on the body. Tighten the screws reciprocally (diagonally) to ensure the body is perfectly centered. Make sure the screw heads are completely embedded into the recess.

STEP 4: Security Armor (Protective Ring) Application

Screw the Aluminum Protective Ring onto the main body to prevent the set screws from being unscrewed. Once the ring threads are seated, gently crush the ring threads at 3 different points using a fine-tipped screwdriver and a light hammer blow (Staking process). This process makes it impossible to remove the product via external interference.

STEP 5: Cap and Chain Integration

Attach the original or provided chained cap using the connection point on the product. Check that the cap closes smoothly and ensures a seal.

STEP 6: Functional Test and Approval

Flow Test: Verify a flow rate of 100-120 liters per minute by inserting the fuel pump. (The vented system prevents pressure buildup).
Security Test: Confirm that the strainer system (Anti-Siphon) does not allow passage by lowering a hose through the tank opening.

FG-70/2.DT.180 Package Contents

1 Piece Fuel Guard FG-70/2.DT.180 Fuel Security Device

Mounting set screws

Locked set screw protector collar

Cap retainer chain

Installation manual and warranty card
